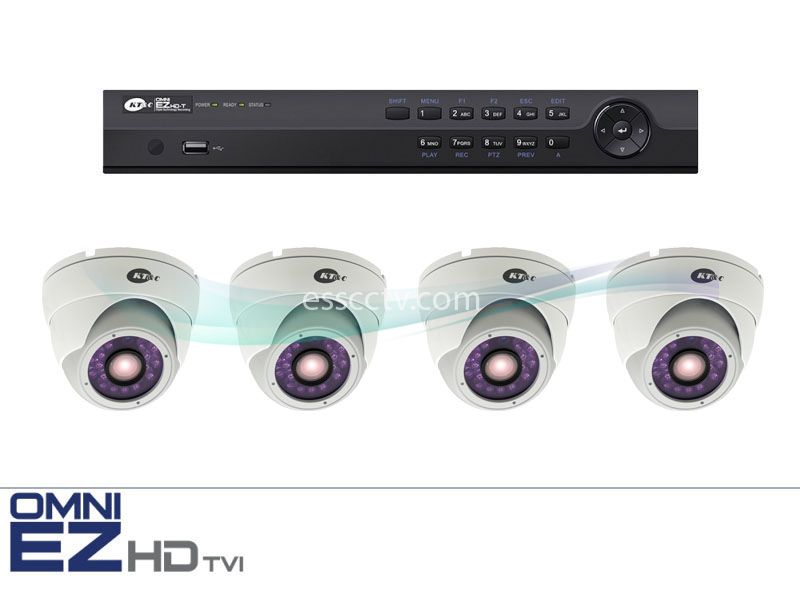

HD-TVI 4ch HD 1080p/720p recording system (Optional HDD)

Triple Technology Recording - works with HD-TVI, analog, and OMNI IP cameras

click for more detail

• Intelligent Video Inputs: connect 1080p/720p EZHD HD-TVI or 960H/SD analog to ANY input at any time
  - Reuse existing analog cameras or choose any mix of HD/SD on new systems
  - Upgrade any analog camera to megapixel at any time
  - Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality
  - Useful digital zoom on live view and playback
  - Field select 1080p or 720p, 30/25 Hz or 60/50 Hz
• Operation over ‘almost any’ wire
  - More than 1000 feet on standard RG59 coax
  - More than 1500 feet on RG6
  - More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).

• Display Live/Record 2.1 Megapixel 1920x1080 (1080p), 1 Megapixel 1280x960 (720p), 960x480 (WD1/960H), 704x480 (SD)
  - 1080p recording at up to 15FPS per camera
  - Real time recording on any/all channels at 720p, WD1 or SD resolution
  - Playback any/all cameras at up to record rate
  - Independent configuration for each channel: resolution main/sub-stream, FPS, bit rate, image quality, etc.

• Up-the-cable control [UTC] to access compatible camera OSD menus from the DVR PTZ controls (local or remotely)

• Triple Technology Recording: Connect additional OMNI-IP Plug-and-Play IP cameras (4+1, 8+2, 16+2) up to 1080p resolution without sacrificing BNC input

•  H.264 Compression for efficient HDD utilization
  - One (4, 8 channel) or 2 (16 channel) internal hard drives for up to 4 or 8Tb of internal storage
  - Up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
  - Simultaneous high bandwidth recording plus sub-stream recording for reduced bandwidth remote viewing
  - Watermarking for validation of recorded video
  - Record scheduling per-camera, with HDD quotas, holidays, parameter change on alarm/event

• Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel

• Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)

• Easy router setup for remote access: uPnP/NAT automatically sets up port forwarding (router must support/allow uPnP)

• HDMI & VGA Main monitor outputs for up to 1080p HD display detail

• User friendly GUI with graphical icons, visual indicators and multiple language support
  - Easy to use on-screen menus include digital zoom and instant playback of recent video
  - Operate using front panel controls, wheel mouse or included IR remote

• Quickly locate and review event video
  - Search by date/time, or preview images by pointing along a color coded timeline of record type
  - Tag video of interest for easy retrieval or export
  - Play based on results of extensive event/alarm log search
  - Use “Smart Search” to define an area of interest; the DVR quickly reviews recorded video to list instances of motion in that area for review by the operator

• Digital Zoom with Virtual PTZ in Live & Playback

• Privacy masking (4 zones) to block observation of specific areas within the field of view

• Audio Input and Output for recording and/or two way audio

• Ethernet interface for remote network viewing and control, and to connect IP cameras

• Multiple Control Inputs: local mouse/hand held IR remote controller (both included); web browser and CMS controls

• On-screen PTZ control via mouse or IR remote

• USB 2.0 ports on front and rear panels for video archive and mouse usage

• Free DDNS Service – static IP address is not required for reliable remote access

• IE, Chrome, Firefox and Safari browser Web clients

• Free Multi-Site Windows and MAC OMNI CMS can display up to 64 live/16 playback views

• Remote configuration support from built-in web interface and/or free OMNI CMS program

• Free iOS and Android apps:
  - Scroll though single/quad display live views
  - Playback specific cameras by date/time plus easy slider control
  - Audio monitoring support
  - PTZ and relay control
  - Up to 16 camera views from HD tablets (HD app)
