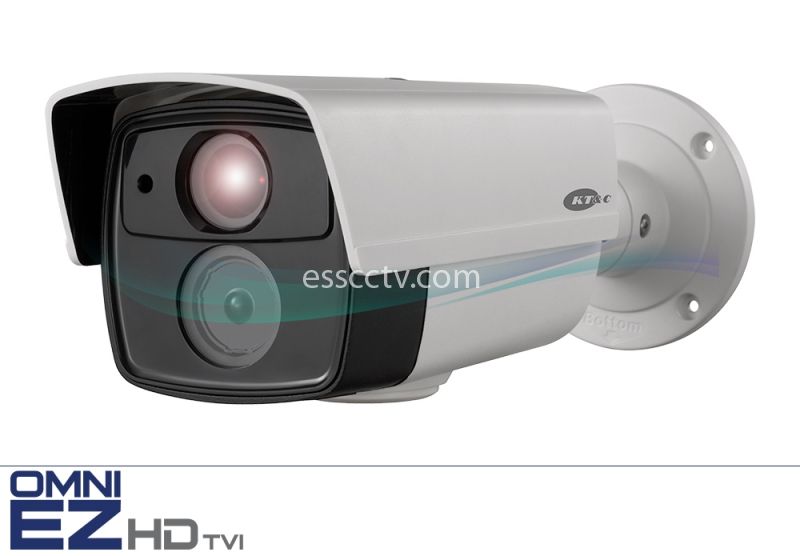

1080p HD-TVI Outdoor Bullet with IR
| Imaging Device | 1/3" Progressive Scan CMOS |
| Video Format | Main Output: 1080p30/25 HD-TVI (30/25Hx OSD selectable) |
| Secondary Output: CVBS (OSD selectable NTSC/PAL) aux video plus test point | |
| Effective Picture Elements | 1920 (H) x 1080 (V) |
| Horizontal Resolution | More than 1080 HTVL |
| WDR Range | 120dB |
| Sensitivity | 0 lux IR on; .014 lux @ F1.4 (AGC On) |
| Day/Night Type | True Day/Night with ICR motorized filter control |
| Lens Type | 1/2.7” 3 Megapixel Varifocal Type 2.8~12mm F=1.4 IR corrected |
| Angle of view | 92°(2.8mm) ~ 32°(12mm) |
| IR LED | One Super Beam LED, 850nm (Can be disabled in OSD if desired) |
| IR Range* | 164’ / 50m (*As with all IR cameras, IR range will vary based on scene IR reflectivity and illumination) |
| Smart IR Exposure Adjust | Active when IR enabled |
| S/N Ratio | Over 52dB |
| Video Output Connector Type | TVI and CVBS: BNC 75Ω |
| Test Video: CVBS video test point inside access cover, cable to BNC supplied | |
| Sync. Mode | Internal |
| OSD Menu | Multiple functions using 3-axis joystick under access cover; UTC Control |
| OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, Mandarin, Cantonese, French, Korean, Italian, Polish, Dutch, Turkish, Hebrew, Arabic |
| UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
| Smart Focus | Display of one screen index of relative focus; optimize number for best focus |
| Scene Optimization | Choose: Indoor, Indoor 1, Outdoor, Low Light |
| WDR/BLC/HSBLC | OFF/WDR/BLC/HSBLC Selectable WDR: Low, Medium, High; adjustable brightness and offset HSBLC: 4 areas, adjustable level and mask, full time or night-only |
| Auto Gain Control | 0~15 |
| Electronic Shutter | Auto; or 1/30 (25), FLK, to 1/50,000 |
| White Balance | ATW; AWC->SET; Manual |
| Color Correction | Nominal Gamma 0.45, adjustable; or, separate adjustment for red and blue levels |
| Day & Night | Auto True D/N with motorized ICR, controlled by photo sensor; IR LEDs may be disabled. |
| Optional color-only and B/W only modes under OSD control | |
| Sens-Up | DSS low light boost Off/Auto 2~30* *DSS levels above 4X should be used only after careful consideration of scene dynamics |
| 2D-DNR | On/Off |
| 3D-DNR | Off/On: Smart Noise Reduction with adjustable level; adjustable AGC range limits |
| Digital Zoom | 2X~62X with virtual P/T (area selection) |
| EZ Digital Zoom | Select programmable area and sensitivity level; while in-area motion/pixel change is detected, image zooms to full screen display of selected area and holds for user selected time; size of area to be shown full screen selected defines zoom ratio when active. |
| Brightness | 1~100 |
| Digital Wide Dynamic Range | On/Off |
| Mirror | Off / H-flip, V-flip, rotate |
| Motion Detection | Off/On for 4 programmable zones (pixel change detection) |
| Privacy Mask | Off/On with full programmability for 8 selectable zones |
| Lens Shading Compensation) | Off/On |
| DPC (Defective Pixel Correction) | Off/On |
| EZ Digital Focus | OSD of numeric indication of degree of image focus |
| Other OSD Functions | Flickerless; Camera Title with position, Font Color; Image Sharpness; CRT/LCD display optimization; Negative Image |
| Power Source | 12VDC |
| Power Consumption | 12VDC:584mA IR LED On |
| Operating Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Environmental | IP66 weather resistant |
| Mechanical | Vandal resistant construction |
| Positioning | 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~90° Rotate: 0~360° |
| Dimensions | 11.84” × 3.97” × 4.23” [301 × 101 × 108mm] |
| Weight | 1.45 lbs./.7Kg |
| Certifications | CE / FCC / RoHS |
