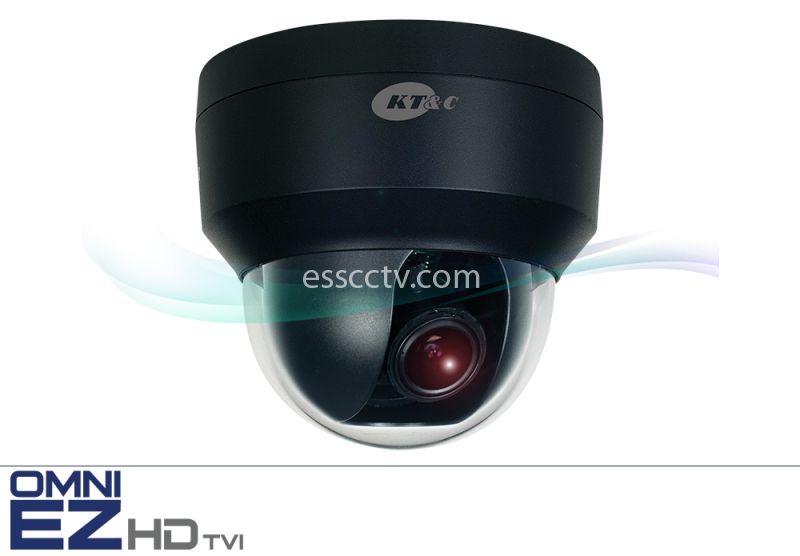

1080p HD-TVI Indoor Dome
Imaging Device | 1/3" Sony 2.1Mp Progressive Scan CMOS |
Video Format | Main Output: 1080p30/25, 720p60/50 HD-TVI (OSD selectable) |
Secondary Output: CVBS (OSD selectable NTSC/PAL) service video test point | |
Picture Elements | 1984 (H) x 1105 (V) |
Effective Picture Elements | 1920 (H) x 1080 (V) |
Horizontal Resolution | More than 1080 HTVL (in 1080p mode) |
Sensitivity | .5 lux @ F1.6 (AGC On) |
Day/Night Type | Digital Day/Night |
Lens Type | 2 Megapixel Varifocal Type 2.8~12mm F=1.6 |
Video Output Connector Type | TVI and CVBS: BNC 75Ω |
Test Video: CVBS video test point inside access cover, cable to BNC supplied | |
Sync. Mode | Internal |
OSD Menu | Multiple functions using 3-axis joystick inside housing; UTC Control |
OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, French |
UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
DWDR / BLC / HSBLC | OFF/WDR/BLC/HSBLC Selectable |
Adjustable for Level 1~10; also BLC area, HLC color. | |
Auto Gain Control | OFF; 2~42dB |
Electronic Shutter | Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
White Balance | Auto / Push Lock / Manual |
Color Correction | Gamma 0.45~.65, adjustable |
Day & Night | Digital D/N; Optional color-only and B/W only modes under OSD control |
Sens-Up | DSS low light boost Off/Auto 2X~16X* |
*DSS levels above 4X should be used only after careful consideration of scene dynamics | |
3D-DNR | Off/Low/Mid/High |
Digital Zoom | 1X~8X |
Defog | Off/Low/Mid/High |
Mirror | Off / H-flip, V-flip, rotate |
Motion Detection | Off/On for programmable zone with sensitivity adjust (pixel change detection) |
Privacy Mask | Off/On with full programmability for 8 selectable zones |
Lens Shading Compensation) | Off/Low/Mid/High |
DPC (Defective Pixel Correction) | Off/On |
Other OSD Functions | Camera Title with position, Font Color; Image Sharpness |
Power Source | 12VDC/24VAC |
Power Consumption | 12VDC: 230mA, 24VAC: 2.5W |
Operating Temperature | -14 °F ~ 122 °F (-10 °C ~ 50 °C) |
Environmental | Indoor, up to 80% RH |
Mechanical | Three axis positioning; plastic housing with snap on cover; clear bubble for maximum light transmission, with integral liner to inhibit observation of camera direction; choice of black body (B suffix) and white body (W suffix) |
Positioning | Included easy-mount twist-on plate (attach to surface; housing base locks to plate); or, mount camera directly to surface if desired. Optional rough-in box adapter with integral twist-on fits 1 or 2 gang boxes or 4” octagonal boxes |
Dimensions | 4.21” (107mm) diameter, 3.82” (97.1mm) high |
With box adapter 5.91” (150mm) diameter x 4.18” (106.1mm) high | |
Weight | 8 oz./ 0.5 lb. / 230 g |
Mounting Options | Junction Box Adapter Plate KA-ICMP1 |
Certifications | CE / FCC / RoHS |
