> Item #1091

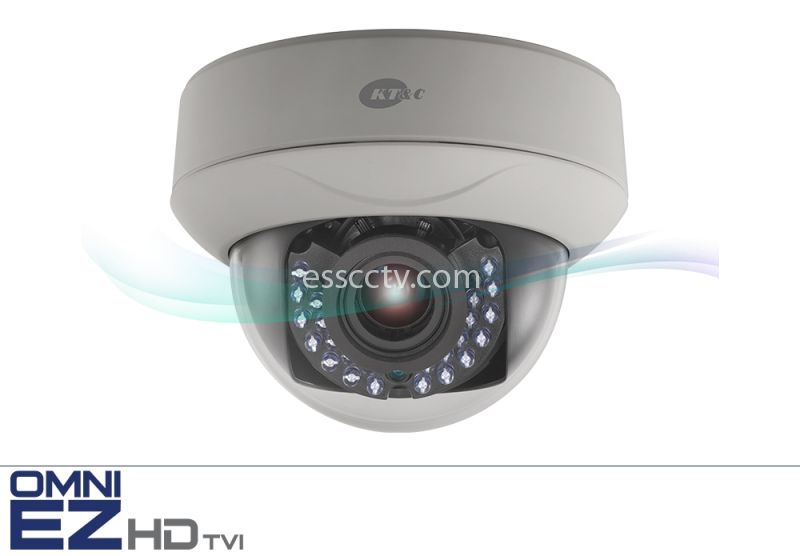

KT&C KEZ-c1DI28V12IR OMNI EZ HD-TVI Camera 720p Dome, 24 IR LED, 2.8-12mm

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: KEZ-c1DI28V12IR
Item #: 1091
Manufacturer: KT&C USA

MSRP: $180.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

This Model has been discontinued.
Please follow the link for our recommended replacement: KEZ-c2TR4IR

720p HD-TVI Indoor IR Dome

Superlative HD resolution of 720p60 for amazing image quality and useful digital zoom

HD-TVI HD BNC output, plus CVBS analog BNC output

Operation over ‘almost any’ wire
- Up to 1500 feet on standard RG59 coax; longer distances on RG6
- Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).

1/3” progressive scan CMOS sensor with .001 lux native light sensitivity

Digital Wide Dynamic Range to handle challenging of bright or unbalanced lighting conditions

Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)

True Day/Night zero light operating range of 100 feet or more (depending on scene reflectivity) from 24 IR LEDs

Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots

Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting

Simple and easy to use OSD setup menu
- Local 5-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- Digital Wide Dynamic Range for bright or unbalanced scenelighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity andconserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery

2.8~12mm F=1.4 Varifocal Megapixel lens to capture the desired field of view (78°~28° FOV)

12VDC operation with low (under 300mA) current draw

Indoor operation with temperature range of -4°F~140°F

Imaging Device	1/3" Progressive Scan High Sensitivity CMOS
Video Format	Main Output: 720p60(50) HD-TVI
Video Format	Secondary Output: CVBS (OSD selectable NTSC/PAL)
Picture Elements	1305 (H) x 1049 (V)
Effective Picture Elements	1280 (H) x 720 (V)
Horizontal Resolution	More than 960 HTVL
Sensitivity	0 lux IR on; sensor .001 lux @ F1.2 (AGC On); .0014 lux @ F1.4 (AGC On)
Lens Type	Megapixel Varifocal Type 2.8~12mm F=1.4 IR corrected
Angle of view	78°(2.8mm) ~ 28°(12mm)
IR LED	24 IR LEDs, 850nm (Can be disabled in OSD if desired)
IR Range*	100’ (*As with all IR cameras, IR range will vary based on scene IR reflectivity and illumination)
Smart IR Exposure Adjust	Active when IR enabled
S/N Ratio	Over 62dB (NR On)
Video Output Connector Type	TVI and CVBS - BNC 75Ω
Sync. Mode	Internal
OSD Menu	Multiple functions using 3-axis joystick under access cover; UTC Control
OSD Languages	English, Chinese
UTC Control	Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling
BLC/HSBLC	OFFBLC/HSBLC Selectable HSBLC: 4 areas, adjustable level and mask, full time or night-only
Auto Gain Control	Off/low/Middle/High
Electronic Shutter	Auto; or 1/60 (50) to 1/50,000
White Balance	Auto/Manual
Color Correction	Nominal Gamma 0.45, adjustable; or, separate adjustment for red and blue levels
Day & Night	Auto True D/N with motorized ICR, controlled by photo sensor; IR LEDs may be disabled
Day & Night	Optional color-only and B/W only modes under OSD control
Sens-Up	DSS low light boost Off/Auto 2~30* *DSS levels above 4X should be used only after careful consideration of scene dynamics
2D-DNR	On/Off
3D-DNR	Off/Low/Middle/High
Scene Optimization	Choose: Indoor, Indoor 1, Indoor, Low Light
Digital Wide Dynamic Range	On/Off (Level Adjustable)
Mirror	Off/On
Motion Detection	Off/On for 4 selectable zones (On screen indication)
Privacy Mask	Off/On for 8 selectable zones
Lens Shading Correction	Off/On with adjustable level and center
Smart Focus	Display of one screen index of relative focus; optimize number for best focus
Other OSD Functions	Camera Title with position, Font Color, Image Contrast/Sharpness, CRT/LCD display optimization, Negative Image, DPC(Dead Pixel Compensation)
Power Source	12VDC
Power Consumption	12VDC:292mA IR LED On
Operating Temperature	-4 °F ~ 140 °F (-20 °C ~ 60 °C)
Environmental	Less than 90% RH, non-condensing
Mechanical	Vandal resistant construction
Positioning	3-axis flexible positioning for wall or ceiling mounting Pan: 0~355° Tilt: 0~180° Rotate: 0~355°
Dimensions	Ø5.35” × 3.98” [Ø136 × 101 mm]
Weight	.84 lbs./380g
Certifications	CE / FCC / RoHS
