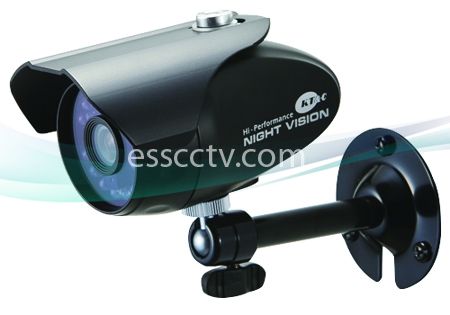

Outdoor 750 TVL IR Bullet Camera
Signal System | NTSC |
Image Sensor | 1/3" 960H Super HAD CCD II |
Scanning System | 2:1 Interlace |
Horizontal Resolution | 750TV Lines |
Scanning Frequency (H) | 15.734 KHz |
Scanning Frequency (V) | 59.94 Hz |
Total Pixels (H x V) | 811 x 508 |
Effective Pixels (H x V) | 768 x 494 |
Synchronization | Internal |
Lens | 2.97, 3.6, 4.3, 6.0, 8.0, 12.0 mm Lens |
Lens Type | Fixed Board Lens |
S/N | More than 50dB (AGC: Off, DNR: On) |
Gamma | r = 0.45 |
Min. Illumination | 0 Lux (IR LED On) |
Shutter Speed | 1/60 ~ 1/100,000 sec |
Day & Night | Digital Day & Night |
IR LED / Distance | 20 IR LEDs / Max. 27 m (90 ft) |
Day & Night Function | Auto |
IP Rating | IP67 (Weather Proof) |
Video Output Level | 1 Vp-p Composite (75 Ω) |
Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
Storage Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
Power Supply | DC 12V (±10%), Max. 380mA |
Dimension | Φ2.3 x 4 inch (Φ59 x 101 mm) |
Weight | 0.8 lbs (362 g) |
