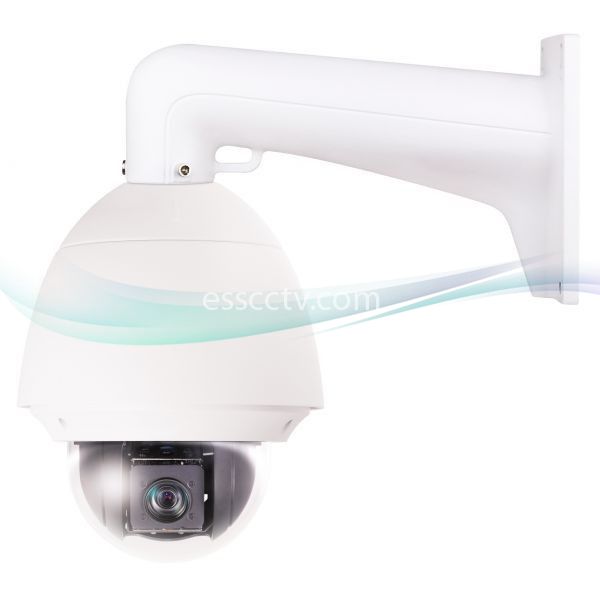

LTS proudly introduces HD-TVI technology, a breakthrough on analog solution helping analog users to maximize their expansion needs.
No more fuzzy pictures from analog systems - LTS HD-TVI systems guarantee long distance real-time HD transmission at 720P/1080P up to 1500ft via coaxial cable; as well as UTP cable with video baluns. It is easy to upgrade an existing analog system to HD without replacing wiring—a huge saving on total cost of ownership.
Main Features:
• Real-time HD Analog Solution at 1080P/720P
HD-TVI solution offers high definition video output at 1080P/720P with frame rate of up-to 30fps; quadruple the clarity of your traditional analog system.
• Universal HD-TVI Technology Ensures Seamless Compatibility
The universal HD-TVI technology provides seamless interoperability with any HD-TVI devices of any brand on the market; making 3rd party device integration a breeze.
• Up to 1500ft Long Distance HD Transmission via Coaxial Cable
HD-TVI guarantees long distance HD video transmission up to 1500ft at 1080P/720P using coaxial cable.
FEATURES
| Camera | |
| Image Sensor | 1 / 3”Sensor |
| Effective Pixel | 3270K |
| Horizontal Resolution | 1100TVL |
| Signal System | PAL / NTSC |
| Min. Illumination | Color: 0.2Lux@( F1.6,AGC ON) B/W: 0.02Lux@( F1.6,AGC ON) |
| White Balance | Auto / Manual / ATW / Indoor / Outdoor |
| AGC | Auto / Manual |
| S / N Ratio | ≥ 50dB |
| 3D DNR | Support |
| Digital WDR | Support |
| EIS | Support |
| Backlight compensation | Support |
| Shutter Time | 1-1/10,000s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16X |
| Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
| Focus Mode | Auto / Semiautomatic / Manual |
| Lens | |
| Focal Length | 4-120mm, 30X |
| Zoom Speed | Approx.3.0s(Optical Wide-Tele) |
| Angle of View | 58-1.7 degree(Wide-Tele) |
| Min. Working Distance | 10-1500mm (Wide-Tele) |
| Aperture Range | F1.6-F4.4 |
| Pan and Tilt | |
| Pan / Tilt Range | Pan: 360° endless; Tilt: -5° ~ 90° (Auto Flip ) |
| Pan / Tilt Speed | Pan Manual Speed: 0.1° ~250°/s, Pan Preset Speed: 300°/s Tilt Manual Speed: 0.1° ~150°/s, Tilt Preset Speed: 200°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 patterns, with the total recording time not less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
| PTZ Position Display | On / Off |
| Preset Freezing | Support |
| Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
| RS-485 communication diagnosis |
Support |
| Input/ Output | |
| Monitor Output | 1 HD TVI output , 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
| RS-485 Interface | Half-duplex mode, Pelco-P, Pelco-D protocol |
| UTC function | Self-adaptive PELCO_C |
| General | |
| Menu Language | English, Chinese |
| Power | 24VAC; Max. 20W (Heater On), Max. 12W(Heater Off); |
| Working Temperature | -22°F-149°F(-30 °C-65°C); 90% or less |
| Protection Level | IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Impact Protection | IEC60068-275Eh, 20J; EN50102, up to IK10 |
| Dimension | Φ8.66”×12.00”(Φ220×305mm ) |
| Weight (approx.) | 11.02Ibs(5Kg) |
