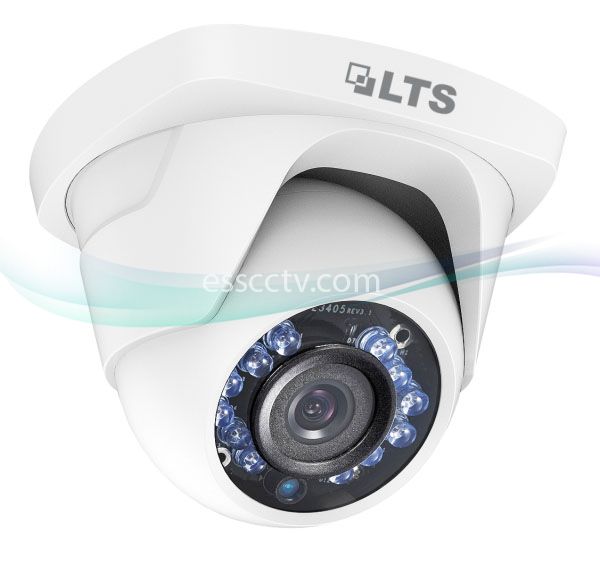

LTS proudly introduces HD-TVI technology, a breakthrough on analog solution helping analog users to maximize their expansion needs.
No more fuzzy pictures from analog systems - LTS HD-TVI systems guarantee long distance real-time HD transmission at 720P/1080P up to 1500ft via coaxial cable; as well as UTP cable with video baluns. It is easy to upgrade an existing analog system to HD without replacing wiring—a huge saving on total cost of ownership.
Main Features:
• Real-time HD Analog Solution at 1080P/720P
HD-TVI solution offers high definition video output at 1080P/720P with frame rate of up-to 30fps; quadruple the clarity of your traditional analog system.
• Universal HD-TVI Technology Ensures Seamless Compatibility
The universal HD-TVI technology provides seamless interoperability with any HD-TVI devices of any brand on the market; making 3rd party device integration a breeze.
• Up to 1500ft Long Distance HD Transmission via Coaxial Cable
HD-TVI guarantees long distance HD video transmission up to 1500ft at 1080P/720P using coaxial cable.
FEATURES
| Camera | |
| Image Sensor | 1/3"Sensor |
| Signal System | NTSC / PAL(Euro Version) |
| Effective Pixels | 1920(H)×1080(V) |
| Min. Illumination | 0.01 Lux @ (AGC ON),0 Lux with IR |
| Shutter Speed | NTSC: 1/30 ~ 1/50,000 PAL: 1/25 ~ 1/50,000 |
| Lens | 3.6mm |
| Day & Night | ICR |
| Synchronization | Internal synchronization |
| Video Frame Rate | NTSC:1080p@30fps/PAL:1080p@25fps |
| HD Video Output | 1 Analog HD output |
| S/N Ratio | More than 52dB |
| Menu | |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Camera ID | On / off (15 characters, position programmable) |
| AGC | Support |
| D / N Mode | Color / BW / EXT |
| White Balance | ATW, AWC-SET, Indoor, Outdoor, Manual |
| D/N Mode | Color/BW/SMART IR |
| Privacy Mask | On/Off,maximum 8 zones |
| Motion Detection | On / Off, maximum 4 zones |
| BLC | Support |
| Anti-flicker | On / off |
| Language | English, Japanese, CHN1, CHN2, Korean, German, French, Italian,Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic |
| Functions | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| General | |
| Working Temperature /Humidity |
-4°F - 140°F(-20 °C - 60 °C ) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12V DC |
| Power Consumption | Max.4W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 65ft(20m) |
| Dimension | 3.5'' × 2.3'' ( 89.6 x 59.1mm) |
| Weight | 0.9lb(400g) |
