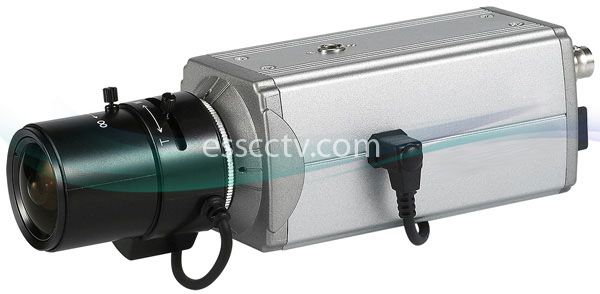

Eyemax CP-064 Box Camera, 620 TVL, 2D DNR, Dual voltage, upgrade from CO 564OSD
Images are for illustration purpose and may not show the actual product.
Model:
CP 064
Item #: 10
Manufacturer: Eyemax
MSRP:
$100.00
Our Price:
$82.00
(You save: $18.00)
This Model has been discontinued.
Please follow the link for our recommended replacement: BX-604
- 1/3” Sony Super HAD II Color CCD
- Day and Night Function
- High Resolution : 620 TV Line (Color)
- 0.1 lux at F1.2 (Color) / 0.01 Lux (B&W)
- Auto detects DC 12V or AC 24V
- Auto White Balance (AWB)
- Back Light Compensation (BLC)
- Auto Gain Control (AGC)
- SDNR: 2D DNR (digital noise reduction)
- C or CS mount for lens
 |
High-Res 620 TV Line
The camera is powered by NEXT chipset that is embodied the top grade of the world at 620 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector. |
 |
2D DNR (2D DIGITAL NOISE REDUCTION)
Improved S/N ratio 50dB and more sharp and noiseless low light image quality provided by built-in noise reduction (2DDNR: 2D Digital Noise Reduction) function. |
| |
OSD CAMERA SETUP
It has have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera. |
| 620 TV Line (Color) |
| SONY 1/3 inch Super HAD II CCD |
| 811(H) x 508(V) 410K Pixel |
| 768(H) x 494(V) 380K Pixel |
| 2:1 Interlace |
| Internal |
| Horizontal: 15.734Khz / Vertical: 59.94Hz |
| More than 50dB (AGC off) |
| CVBS: 1.0Vp-p / 75 ohm |
| 0.1 lux at F1.2 (Color) / 0.01 Lux (B/W) |
| ATW / AWC / Push / Manual |
| Auto / Manual1/60 sec ~ 1/120,000 sec (NTSC) |
| Built-in |
| OFF / BLC / HLC Selectable |
| Low / Middle / High / Off Selectable |
| ON / OFF |
| Auto / COLOR / BW / EXT |
| On / Off (8 Zone) |
| On / Off (Motion Size: 28x15, 4 Area) |
| Internal / Auto |
| -10°C ~ +40°C (14°F ~ +104°F) / 30% ~ 80% RH |
| -20°C ~ +60°C (-4°F ~ +140°F) / 20% ~ 90% RH |
| Dual Voltage: 24VAC / 12VDC |
