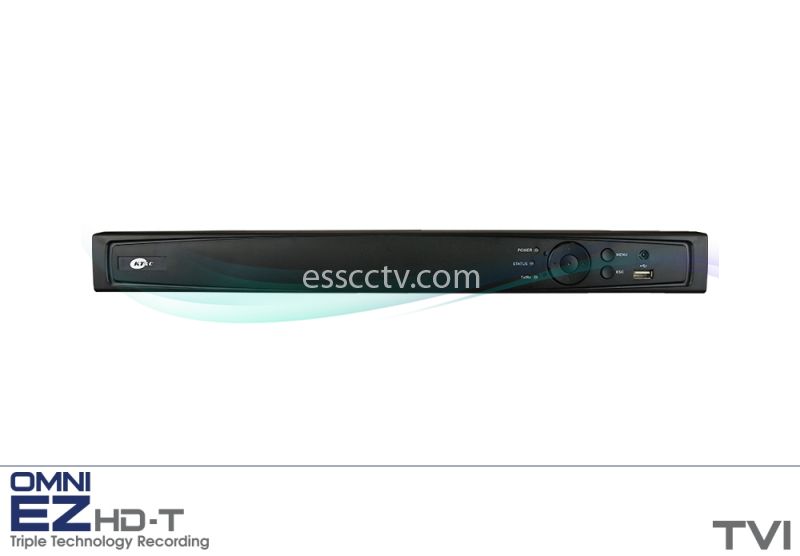

4 Channel HD-TVI DVR
Triple Technology Recording - works with HD-TVI, analog, and OMNI IP cameras
Display Live/Record 2.1 Megapixel 1920x1080 (1080p), 1 Megapixel 1280x960 (720p), 960x480 (WD1/960H), 704x480 (SD)
- 1080p recording at up to 15FPS per camera
- Real time recording on any/all channels at 720p, WD1 or SD resolution
- Playback any/all cameras at up to record rate
- Independent configuration for each channel: resolution main/sub-stream, FPS, bit rate, image quality, etc.
Up-the-cable control [UTC] to access compatible camera OSD menus from the DVR PTZ controls (local or remotely)
Triple Technology Recording: Connect additional OMNI-IP Plug-and-Play IP cameras (4+1, 8+2, 16+2) up to 1080p resolution without sacrificing BNC input
H.264 Compression for efficient HDD utilization
- One (4, 8 channel) or 2 (16 channel) internal hard drives for up to 4 or 8Tb of internal storage
- Up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
- Simultaneous high bandwidth recording plus sub-stream recording for reduced bandwidth remote viewing
- Watermarking for validation of recorded video
- Record scheduling per-camera, with HDD quotas, holidays, parameter change on alarm/event
Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
Easy router setup for remote access: uPnP/NAT automatically sets up port forwarding (router must support/allow uPnP)
HDMI & VGA Main monitor outputs for up to 1080p HD display detail
User friendly GUI with graphical icons, visual indicators and multiple language support
- Easy to use on-screen menus include digital zoom and instant playback of recent video
- Operate using front panel controls, wheel mouse or included IR remote
Quickly locate and review event video
- Search by date/time, or preview images by pointing along a color coded timeline of record type
- Tag video of interest for easy retrieval or export
- Play based on results of extensive event/alarm log search
- Use “Smart Search” to define an area of interest; the DVR quickly reviews recorded video to list instances of motion in that area for review by the operator
Digital Zoom with Virtual PTZ in Live & Playback
Privacy masking (4 zones) to block observation of specific areas within the field of view
Audio Input and Output for recording and/or two way audio
Ethernet interface for remote network viewing and control, and to connect IP cameras
Multiple Control Inputs: local mouse/hand held IR remote controller (both included); web browser and CMS controls
On-screen PTZ control via mouse or IR remote
USB 2.0 ports on front and rear panels for video archive and mouse usage
Free DDNS Service – static IP address is not required for reliable remote access
IE, Chrome, Firefox and Safari browser Web clients
Free Multi-Site Windows and MAC OMNI CMS can display up to 64 live/16 playback views
Remote configuration support from built-in web interface and/or free OMNI CMS program
Free iOS and Android apps:
- Scroll though single/quad display live views
- Playback specific cameras by date/time plus easy slider control
- Audio monitoring support
- PTZ and relay control
- Up to 16 camera views from HD tablets (HD app)
| Model | EZHD-TVL4 | EZHD-TVL8 | EZHD-TVL16 | ||
| Intelligent Video Inputs | Analog EZHD/SD Inputs | 4 | 8 | 16 | |
| HD Video Resolutions | EZHD / HD-TVI 720p30(25), 720p60(50), 1080p30(25) | ||||
| Analog CVBS Video Input | Up to 960x480,720x480(NTSC); 960x576,720x576(PAL) | ||||
| Adaptive Ports | Input Format Auto Detection, EZHD/SD can be mixed in any combination, at any time | ||||
| Interface | BNC Connector; 1V p-p, 75Ω | ||||
| Privacy masking | 4 areas programmable in OSD menu | ||||
| Additional OMNI-IP PNP Channels (up to 2 MP) | 1 | 2 | |||
| Total Cameras Supported | 5 | 10 | 18 | ||
| Video Output | Main HDMI & VGA | Full HD 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz 1, 2x2, 1+5, 1+7, 3x3, 4x4 split; User Defined Sequence / Alarm Pop-up | |||
| Recording | Video Compression | Dual Stream: H.264 for Main Stream and Sub-stream | |||
| Video Bitrate | 32Kb/s~6Mb/s each channel | ||||
| Encoding | Main Stream | 1080p (virtual real time); 720p; WD1; 4CIF; VGA; CIF | |||
| Sub Stream | WD1, 4CIF (virtual real time); CIF; QVGA; QCIF | ||||
| Frame Rate | Main Stream | 1/16 fps ~ Real time frame rate (real time at 720p and lower resolutions) | |||
| Sub Stream | 1/16 fps ~ Real time frame rate | ||||
| Quality | 6 levels: Lowest/Lower/Low/Medium/Higher/Highest | ||||
| Mode | Continuous; Motion; Alarm; Motion or alarm, Motion + Alarm | ||||
| Motion Detection | Configurable per camera for area(s), sensitivity and arming schedule programmable by day of week and hour of day | ||||
| Schedule Period | Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays | ||||
| Pre- and Post- Event Recording | Pre-record 0~30 seconds; post record 5s~10 minutes | ||||
| Playback | Synchronous Playback | 4 channels | 8 channels | 16 channels | |
| Playback Resolution | 1080p, 720p, WD1, 4CIF, VGA, CIF, QVGA, QCIF | ||||
| Search Type | Time/Date; motion or log event; Manual Tags; Smart Search for motion events from recorded video | ||||
| Capacity | Up to record rate | ||||
| Playback Controls | Play; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar with overview of record type and snapshot display from slider position | ||||
| Digital Zoom During Playback | Supported on Local Displays and CMS | ||||
| Event & Alarm | Event Source | MD (Motion Detection), Video Loss, Video Tampering/Exceptions | |||
| Event Action Schedule | Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays | ||||
| Event Action | Buzzer, E-mail, Alarm Full Screen Pop-up, Notify CMS Client | ||||
| MD Area | User selectable grid pattern 22x15 areas with adjustable per camera sensitivity | ||||
| System Alarm | Alarm Source | HDD Error, HDD Full, LAN Fail/Address Conflict, Illegal login, Video Signal Exception/, Record/Capture exception | |||
| Alarm Action | Buzzer, E-mail, Notify CMS Client (network permitting) | ||||
| Audio | Two-way audio | Audio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output | |||
| Input / Output | 1ch Input / 1ch Output; RCA, 2V p-p, 1KΩ | ||||
| Compression | Up to 64Kbps, G.711u | ||||
| Network | Interface | 10/100 Base-T Ethernet RJ-45 | 1Gb/s 1000 Base-T Ethernet RJ-45 | ||
| Addressing | Static IP, DHCP, xDSL support | ||||
| NTP/DST | Supported; choice of time zone, NTP server, DST start/end/offset | ||||
| Protocols Supported | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS, KT&C Plug-and-Play (for connected IP Cameras), OMNI Utility Device Discovery | ||||
| NAT | uPnP router NAT/port mapping forwards ports automatically (*Router must support/permit uPnP function) | ||||
| Users | Up to 128 simultaneous connected users | ||||
| DDNS | Simple DDNS free service tracks WAN IP address and HTTP port | ||||
| Security | User IDs | “Admin”, plus multiple configurable login IDs | |||
| User Levels | All rights for “admin”; Per camera per user rights assignment for Operator and User levels | ||||
| User Privilege Control | Local and remote access to Live views, audio, recording, playback, menus, PTZ, alarms, copy, logs, upgrade, reboot | ||||
| Storage & Clip copy | HDD Storage | 1 SATA HDD up to 4Tb | 2 SATA HDD up to 4Tb each | ||
| NAS/SAN | up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk) | ||||
| Copy Type | Multi-Channel or Single Channel File | ||||
| Copy Device | USB 2.0 Drive (2 ports) | ||||
| S.M.A.R.T. | Temperature, duration, error rates, bad sector detection, and more | ||||
| Serial & I/O | USB 2.0 Ports | One front, one rear for mouse and data I/O | |||
| RS-485 | One; selectable speed and bit pattern; multiple protocols (Pelco P, Pelco D, others) | ||||
| Up the Cable Control | Multiple protocols, can be sent out of any BNC port to compatible cameras | ||||
| User Controls | Local Controls | Front Panel camera, function and navigation buttons; IR Remote; Mouse | |||
| Software | Web Viewer | Live view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/extension installed) | |||
| User Rights Control | Per user-per camera for multiple functions | ||||
| Mobile Viewer | iOS and Android supported ; live 1 & 4 camera views; single camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, displays up to 16 live view cameras | ||||
| CMS | Free PC and MAC Clients support multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16 cameras in playback | ||||
| Event Logging | Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type | ||||
| Firmware Upgrade | From USB or remotely | ||||
| Backup/Restore Configuration | From USB or remotely | ||||
| General | Dimension (W x H x D) | 12.4” x 9.5” x 1.8” | 315 × 242 × 45 mm | 15” x 11.4” x 1.9” | 380 × 290 × 48mm | ||
| Chassis Type | Standalone 1U chassis | 19” rack-mountable 1U chassis (Optional rack ears KA-ORM1) | |||
| Weight without HDDs | 3.3 lb. / 1.5Kg | 4.4 lb. / 2Kg | |||
| Operating Temp | 14°F~131°F (-10°C~55°C) | ||||
| Operating Humidity | 10% ~ 90% | ||||
| Voltage | 12VDC from included power supply, 4 pin DIN; power supply input voltage 100~220 VAC 50~60Hz | ||||
| Power | Up to 15W | Up to 20W | Up to 30W | ||
| Certifications | FCC, CE, RoHS | ||||
